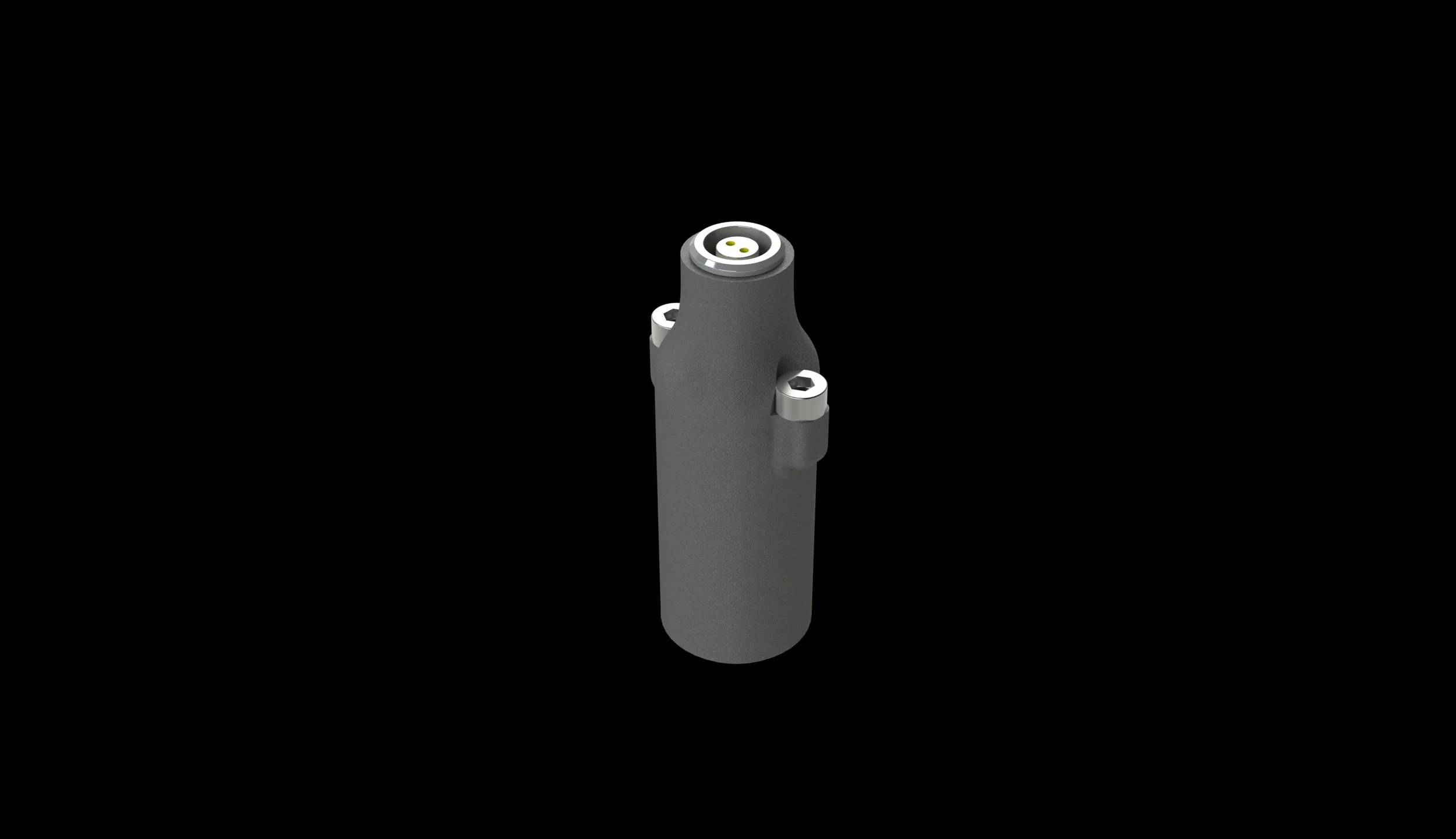

Low-Pull Single-Channel RP EMAT
Our Low-Pull Single-Channel RP EMAT probe is optimised for the SONUS VITESSE family of acquisition systems to generate SH waves in all directions for thickness measurement applications for scenarios where low magnetic force is necessary.
Technical Specifications
Sensor Name
Low-Pull Single-Channel Radially Polarised EMAT
Polarisation
Radial
Aperture
12 mm Diameter Active Area
Max. Lift-Off Tolerance
2 mm
Operating Frequency
3 - 5 MHz
Thickness Measurement Range
2 mm - 100+ mm
Temperature Range
-10°C – 120°C ( +30 mins @ 80°C, +15 mins @ 120°C )
Connector
2 Pin Lemo 0B
Sensor Size
18 L x 25 W x 52 H (mm)
Sensor Weight
45 g
