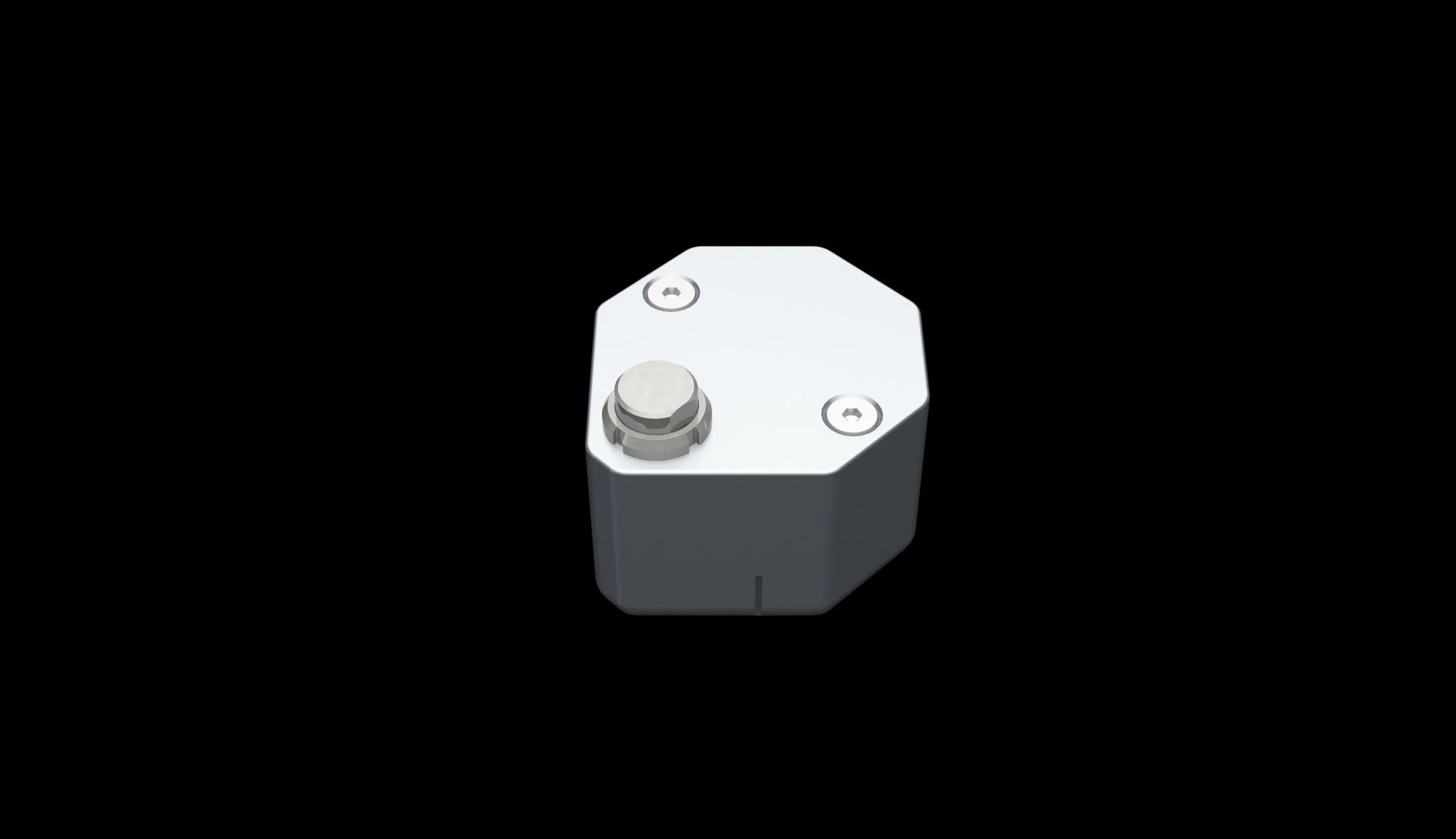

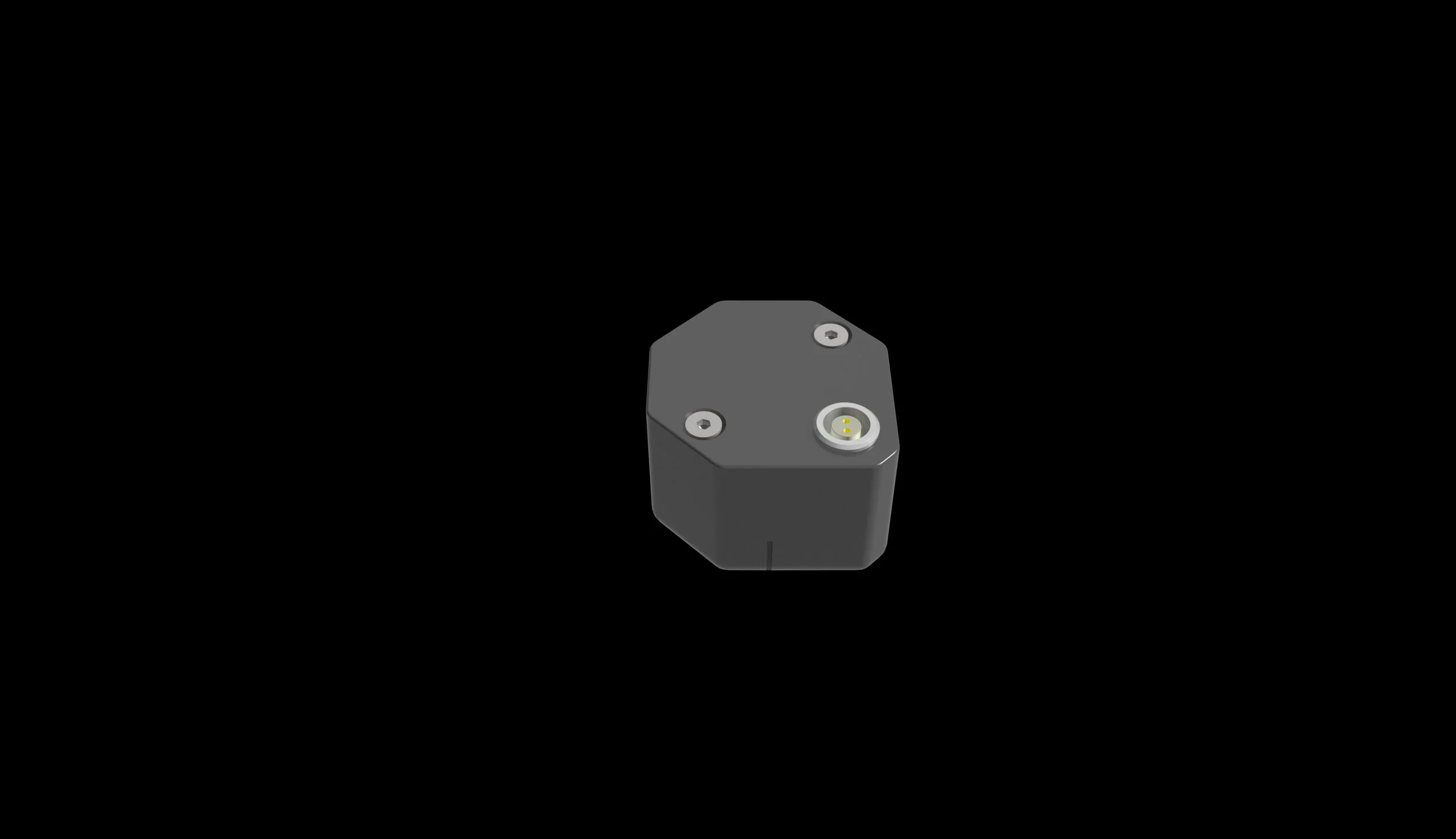

Low-Pull Single-Channel LP High Temperature EMAT
Our Low-Pull Single-Channel LP High Temperature EMAT probe is optimised for the SONUS VITESSE family of acquisition systems to generate SH waves in a single direction for thickness measurement applications for scenarios where the sample has a high surface temperature.
Technical Specifications
Sensor Name
Low-Pull Single-Channel Linearly Polarised High Temperature EMAT
Polarisation
Linear
Aperture
10 mm x 10 mm
Max. Lift-Off Tolerance
2 mm
Operating Frequency
3 - 5 MHz
Thickness Measurement Range
2 mm - 100+ mm
Temperature Range
-10°C – 250°C (continuous)
Connector
2 Pin Lemo 0B
Sensor Size
38 L x 38 W x 27 H (mm)
Sensor Weight
76 g
